HIGHLY EFFECTIVE RETINAL EXAM

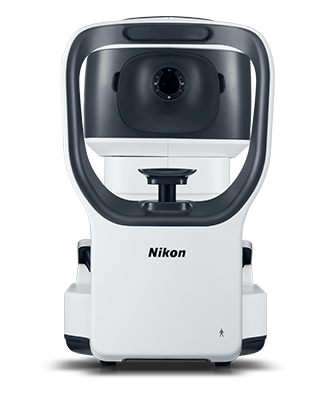

The RetinaStation system is a fully-automatic, non-mydriatic 45° retinal imaging device with an eye to the 3 smart features.
Retinal examination has been proven useful in diabetic retinal disease, cardiovascular disorder and other clinical cases.
Nikon has taken additional steps to enhance such applications. Under its retinal imaging project, Nikon is working on brand-new retinal imaging devices.
PATIENTS FRIENDLY
FOCUS ON A REDUCED BURDEN ON PATIENTS
Retinal examinations can be uncomfortable for patients. To solve this problem, the integrated system design is well thought-out for reliable retinal diagnosis and great patient comfort.
QUALITY
QUALITY IMAGING AND EASE OF USE
The brainchild provides high resolution images and clinical serviceability. With an eye to higher goals, Nikon has been bringing brand-new retinal imaging devices to eye care.
We have come up with the RetinaStation brainchild with quality and versatility in mind. Retinal diagnostic staff can achieve excellent images because the RetinaStation is here.
The touch panel is large and eye-friendly. Functionality includes single-tap, as on a sensory tablet screen, for complete imaging and other diagnostic functions.

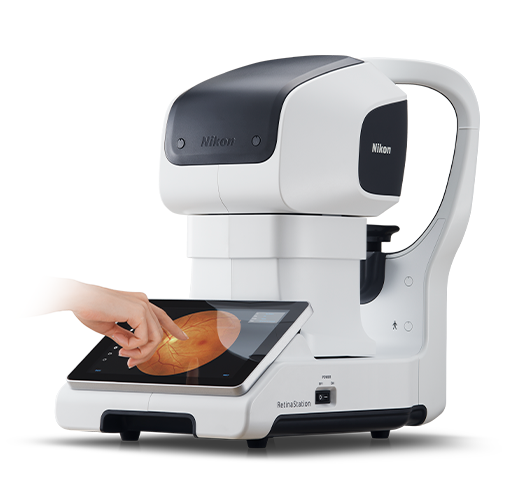

The RetinaStation is equipped with an easily-viewable 10.1” touch panel. A single tap allows you to check each of the eyes, to photograph its fundus and anterior segment, to create auto-montages from wide-angle images and for other functions. The system takes care of all the rest. Pinch to zoom in and out images as you do on tablets.
The across-the-retina zone up to the periphery can be reliably rendered by the resolution as high as 12 million pixels.
The RetinaStation with a high resolution of 12 million pixels is easy to use. Reliable rendition is notched up in usual imaging and also in enlargements and photo-montages. Sharp area-to-area images help increase diagnostic accuracy.
The on-board computer has the Windows 10 OS and dedicated software pre-installed. The self-contained system enables imaging as well as editing, and saves your desk space.
A viewer tool and other useful applications are pre-programmed on the RetinaStation computer (Windows 10 OS). The all-in-one computerized design provides you with everything for imaging and editing. There is no need to connect an external computer or other devices allowing you to save your desk space.
| Function | Value / Type | Remark |
|---|---|---|
| Fundus image | Non-mydriatic, color image | |
| Field of view | >= 45 degrees | |
| Illumination for retina image (capture) | White LED | Flashes for capturing images |
| Cornea image (capture) | White LED | Flashes for capturing images |
| Illumination during alignment to patient’s retina | NIR LED | Central wavelength in the range of 735 – 850 nm |
| Focus diopter adjustment range | -15 D to +10 D | Without compensation lens |
| -30 D to -10 D or +5 D to + 30 D | With compensation lens | |
| Minimum pupil size | 4 mm | |
| Focus adjustment | Auto / manual | Split-image technique |
| Image sensor | CMOS 12 megapixel | |
| Z-ranging (working distance) | 2 fiber dots | |
| Working distance | 25 mm from lens to cornea | Accuracy : +/- 0.5 mm |
| Fixation | Internal | 10 point |
| Function | Value / Type |
|---|---|
| Alignment | Fully automatic 3D tracking |
| Alignment mode | Full auto / auto / manual |
| Chin rest | Motorized |
| Interface | USB 2.0 port, LAN, HDMI |
| Input / output format | Image format : JPEG, PNG, BMP, DICOM |
| Display | 10.1” LCD monitor, touch panel |
| Operation range | Front / back : 40 mm Left / right : 90 mm Up / down : 30 mm |
| Chin rest range | Up / down : 70 mm |
| Dimensions | Depth : 495 mm Width : 288 mm Height : 495 mm |
| Weight | 17 kg |
*The USB interface is used for connecting a USB mass storage device.
