Professional image analyzing, processing and management system
Professional optics with CCD
Special case storage system
Professional software with video function
Background illumination system
Flash function

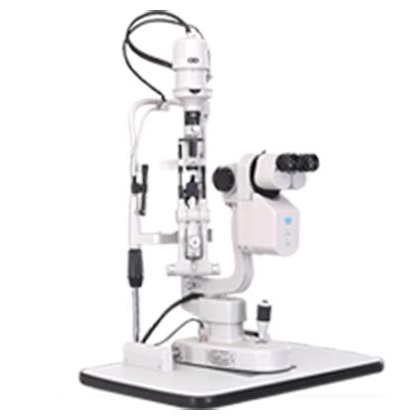

SLM-3 ER (CCD) Digital Slit Lamp
- Professional image analyzing, processing and management system
- Professional optics with CCD
- Support for imaging & refractive devices
- Advanced image processing tools and management system
- Advanced query possibilities on database
- It is possible to use previously obtained data as a starting point for further operations.
- The windows for captures and for viewing images are TAB based,which provide a good overview
- Most important feature is the creation of advanced queries in the patient database.
- Professional software with video function
- Background illumination system;
- Flash function
- DICOM compliant
Technical Specifications
| Technical Specification | |
| Model | Digital Slit Lamp with CCD SLM-3ER |
| Microscope Type | Galileo Parallel |
| Image Capturing Way | CCD |
| Background Illumination | Yes |
| Magnification Change Way | Drum Five Magnifications |
| Eyepiece Magnification | 12.5x |
| Total Magnifications | 6x, 10x, 16x, 25x,40x |
| Diopter Adjustment | -5D ~+5D |
| Illumination | 5 Steps and Step less Optional |
| Slit Width | 0-14MM Continuous |
| Slit Height | 1-14MM Continuous |
| Slit Angle | 0°- 180° Adjustable |
| Slit Inclination Angle | 5°10°15°20° |
| Light Source | High Light Source |
| Light Spot Diameter | 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm |
| Filter | Heat Absorption; Grey; Redfree; Cobalt Blue |
| Fixation | Red LED |
| Electrical | |
| Illumination Bulb | German OSRAM Halogen Tungsten Lamp |
| Input Voltage | 110V/220V (±10%) |
| Input Power | 60VA |
| Diffuse Lens | Yes |
| Preset Lens | Yes |
| Laser Interface | Yes |
| Applanation Tonometer Interface | Yes |
