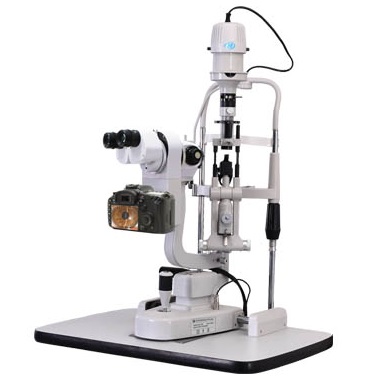

SLM-3 ER-E Digital Slit Lamp

Digital Slit Lamp Microscope

  • SLM-3 ER-E Digital Slit Lamp

SLM-3 ER-E Digital Slit Lamp

SLR camera (24.1 Mega Pixels);

Special case storage system

Professional image analyzing, processing and management system;

Flash illumination compensation system

High definition video function

Background illumination system

Power box supplies camera power directly. without charging battery

Super optical

Top definition eyepiece

Adjusting the illumination by Joystick, it is much easier to use.

Economic, high quality, low maintenance and depreciation

New function:

Illumination control by Joystick

Eyepiece correction (Same focus)

Automatic image optimization (such as color, brightness)

Filter for corneal staining (Five different color is more easier for doctor to get best images)

Category:
  • Stereo variator, best retinal view even through small pupils
  • Professional optics with high definition digital SLR camera (24.1 Mega Pixels);
  • Special case storage system
  • Professional image analyzing, processing and management system;
  • Flash illumination compensation system
  • High definition video function
  • Background illumination system;
  • Power box supplies camera power directly. without charging battery
  • Super optical
  • Top definition eyepiece
  • Adjusting the illumination by Joystick, it is much easier to use.
  • Economic, high quality, low maintenance and depreciation

Technical Specifications

Technical Specification
Model Digital Slit Lamp with camera SLM-3ER-E
Microscope Type Galileo Parallel
Digital System Nikon D 5200 with high definition DSLR24.1 Mega Pixels
Background Illumination Yes
Magnification Change Way Drum Five Magnifications
Eyepiece Magnification 12.5x
Total Magnifications 6x, 10x, 16x, 25x,40x
Diopter Adjustment -5D ~+5D
Illumination 5 Steps (Stepless Optional)
Slit Width 0-14MM Continuous
Slit Height 1-14MM Continuous
Slit Angle 0°- 180° Adjustable
Slit Inclination Angle 5°10°15°20°
Light Source High Light Source
Light Spot Diameter 0.2mm,  1mm, 2mm, 5mm, 10mm, 14mm
Filter Heat Absorption; Grey; Redfree; Cobalt Blue
Fixation Red LED
Electrical
Illumination Bulb German OSRAM Halogen Tungsten Lamp
Input Voltage 110V/220V (±10%)
Input Power 60VA
Diffuse Lens Yes
Preset Lens Yes
Laser Interface Optional
Applanation Tonometer Interface Yes
