Smartscope M5 FA

Smartscope FA fundus fluorescein angiography

Smartscope M5 FA

DIGITAL FUNDUS IMAGING

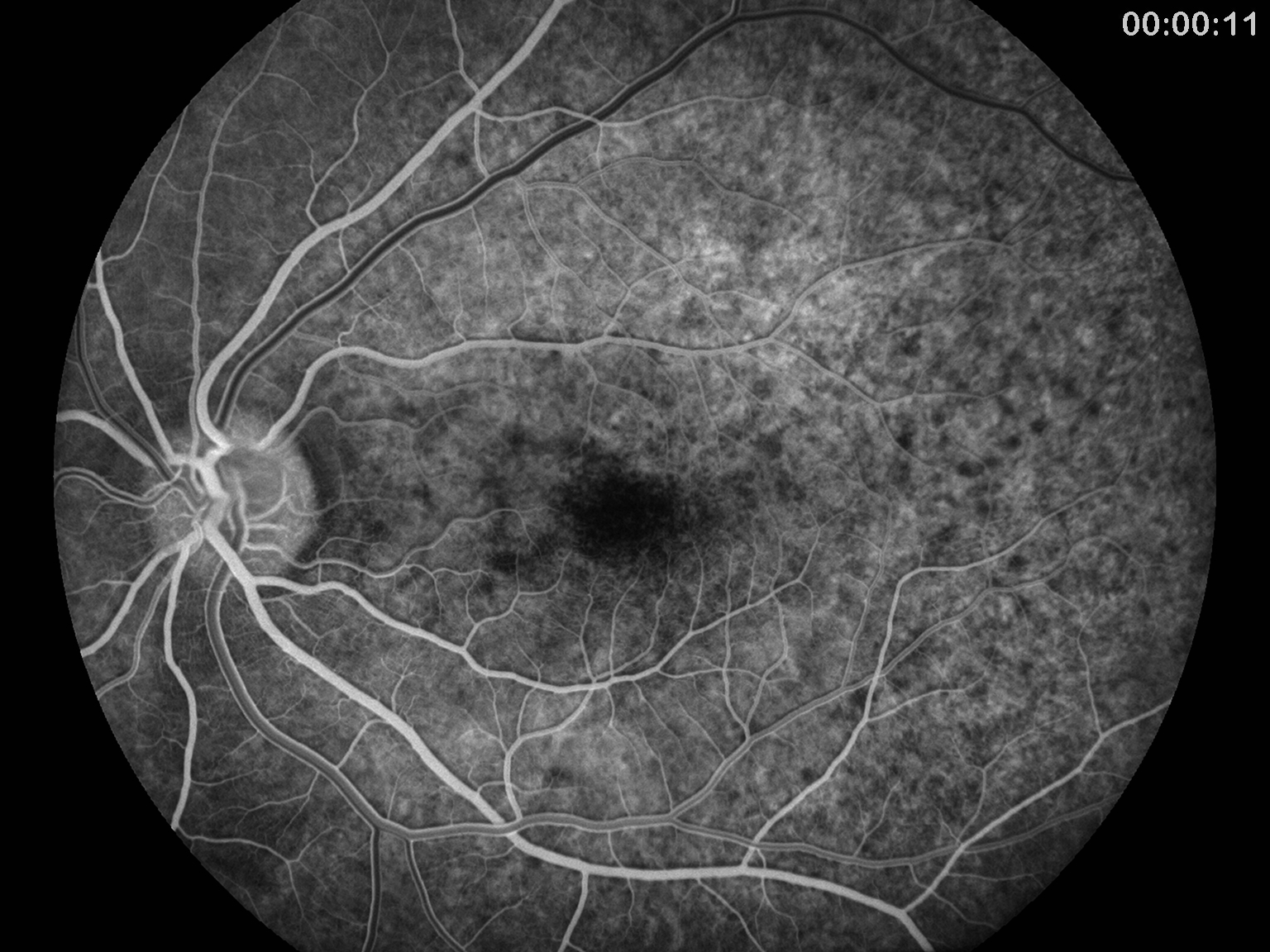

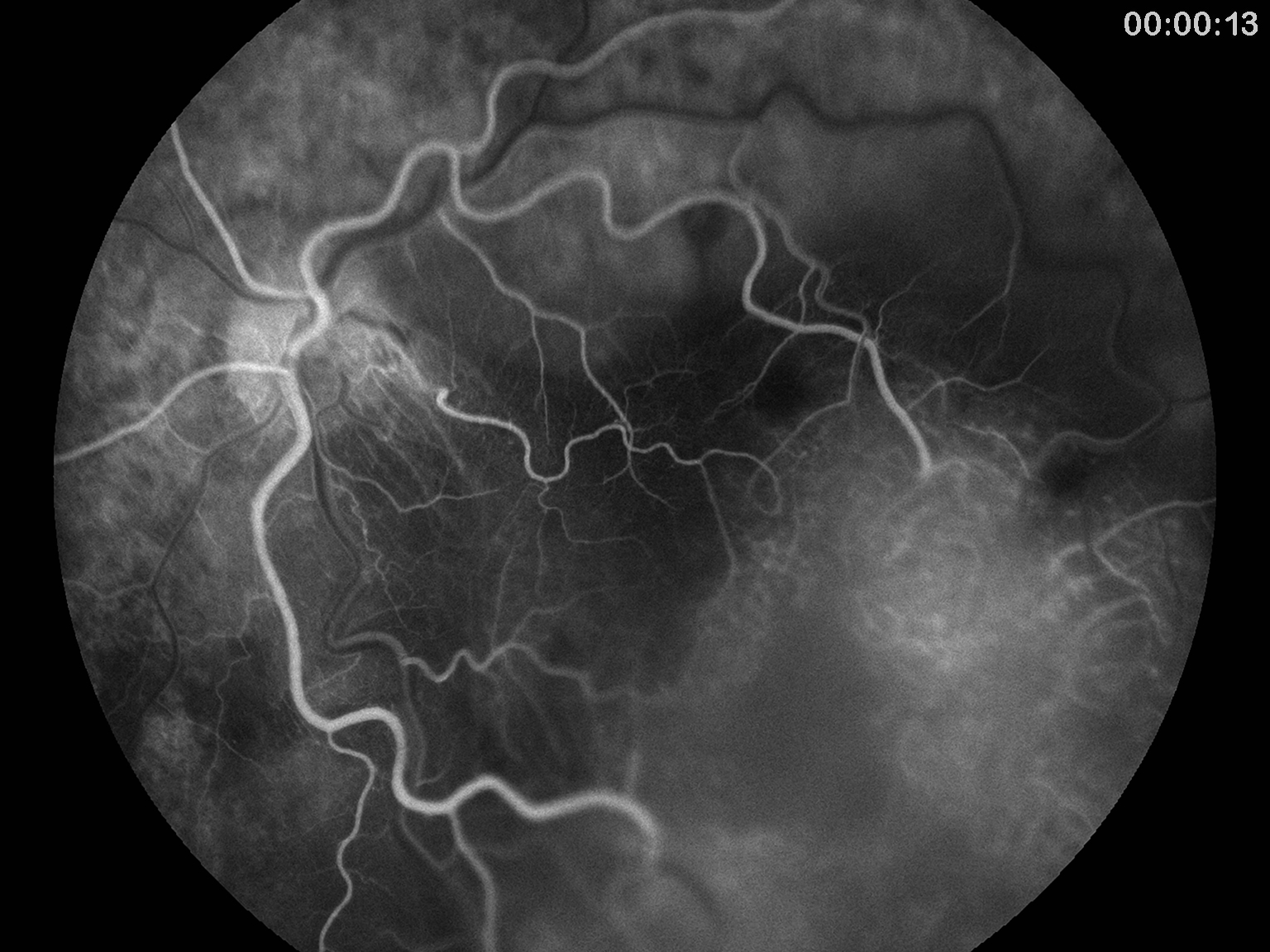

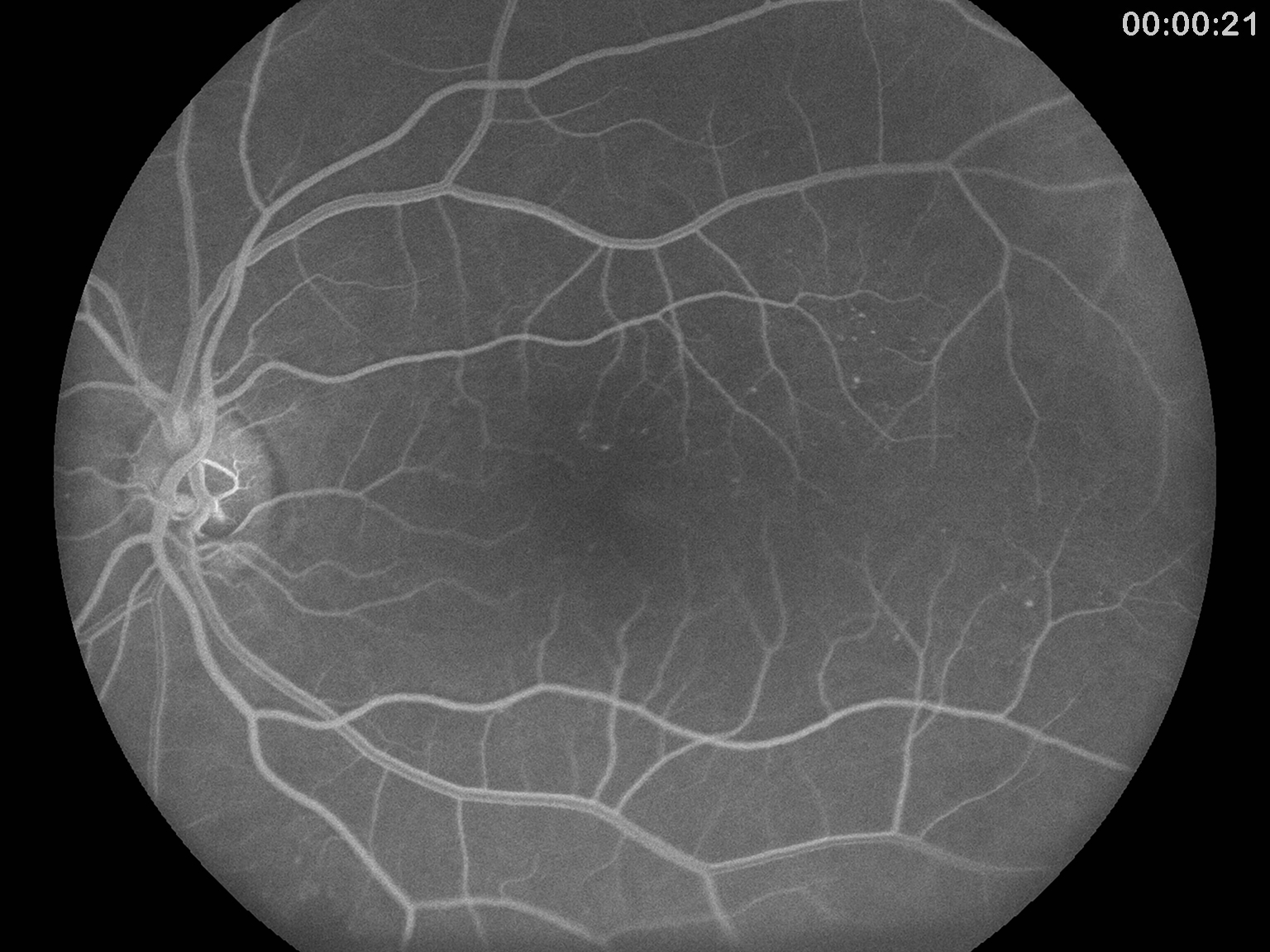

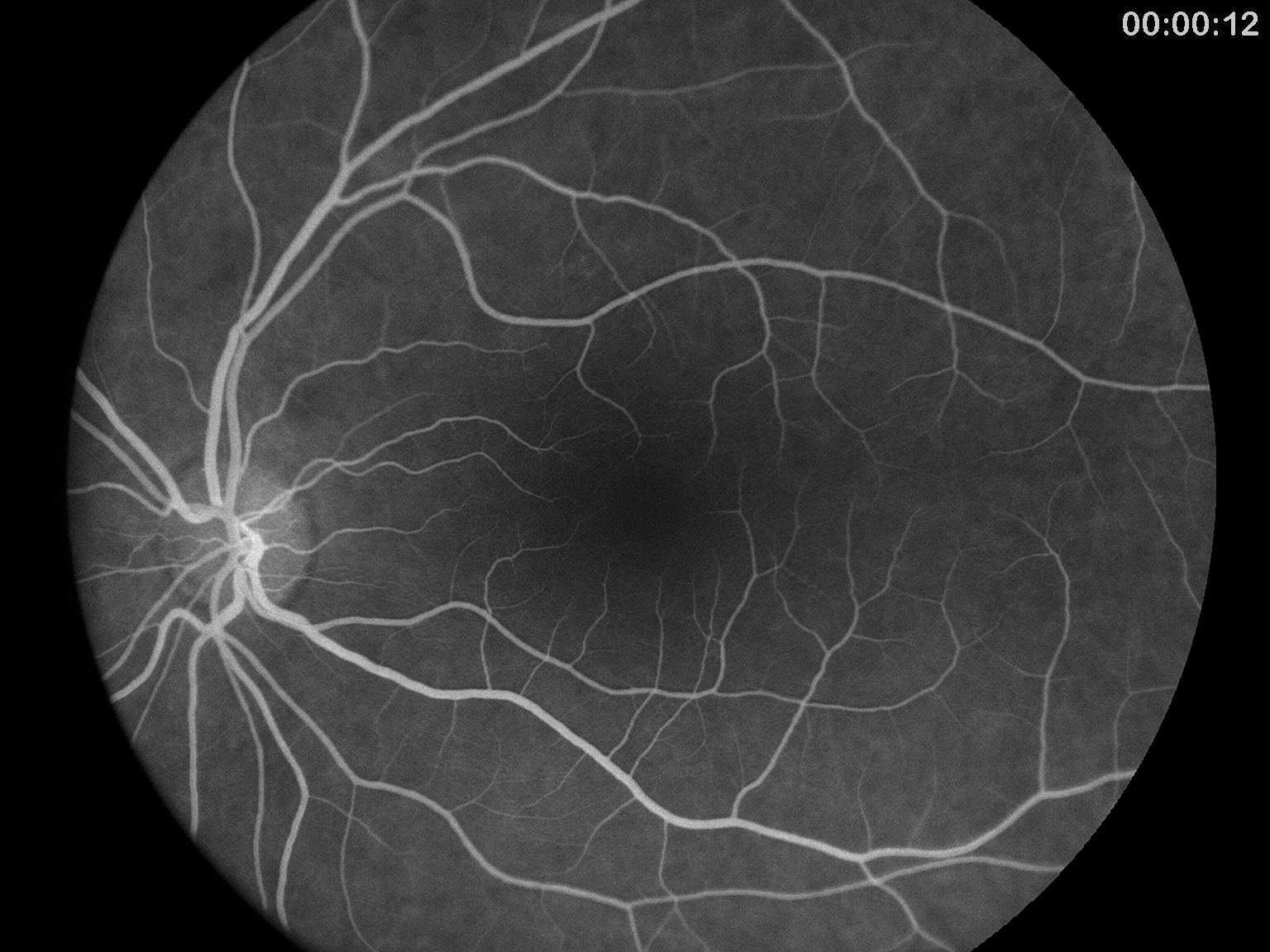

Smartscope PRO camera with Smartscope FA module is a perfect combination of Slit Lamp and hand-held mode providing high quality Fluorescein Angiograms with a wide 40 degrees field of view. 9 internal fixation targets enable peripheral imaging (total FOV 70 * 52 degrees). Smartscope FA is easy to operate and offers fast image capture ability and a detailed view of the entire fluorescein dye circulation dynamics.

With a special Slit Lamp Adapter Smartscope FA can be mounted to any Slit Lamp with patient head rest.

Wi-Fi enables easy image transfer to PC, laptop, tablet or mobile devices. With Optomed Workstation software (sold separately) the images can be viewed, shared and stored locally and sent directly to a DICOM compatible system (PACS or other) of the hospital network.

Category:

Features of Smartscope FA optics module

  • High quality fundus Fluorescein Angiograms
  • With a special slit lamp adapter can be mounted to any slit lamp with patient head rest
  • 9 internal fixation targets for peripheral imaging (total FOV up to 70 x 52 degrees)
  • Wi-Fi for easy image transfer to any PC, laptop, tablet or mobile device
  • Timer display for effective data recording
  • Detailed visualization of filling and non-filling during the early and late phases of angiogram

Technical Specifications

FOV  40 degrees Field of view
Fixation targets 9 internal fixation targets for peripheral imaging (total FOV 70 * 52 degrees)
Timer
Timer display for effective data recording and analyzing
Focus range
Autofocus, -20D to +20D
Minimum pupil size
4.5mm
Optical resolution
> 60 lp/mm (ISO 10940:2009)
Dimensions
 67 (w) x 73 (h) x 160 (d) mm, 400g
