ezREAD™

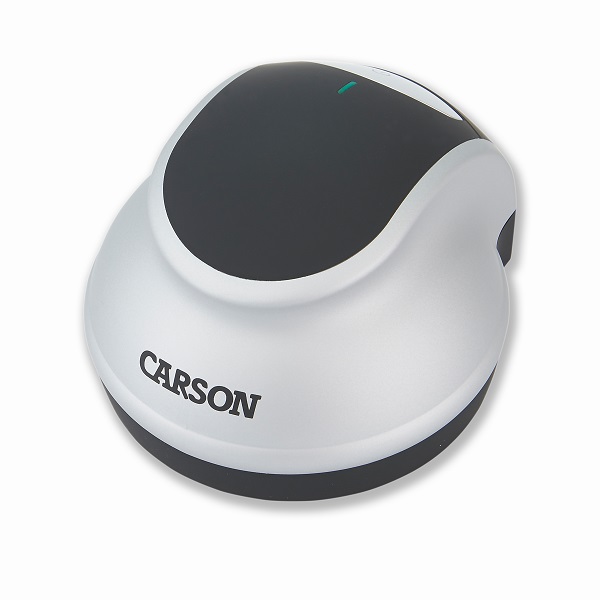

The DR-300 ezRead™ from Carson Optical transforms your television into a visual aid! Place the ezRead™ directly on top of your reading material to display the magnified image in full color on your television screen!

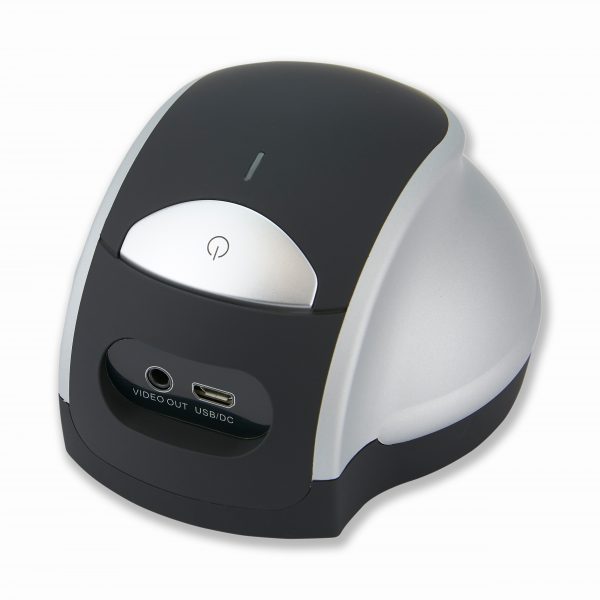

Connect to your television in seconds using the supplied video cable. Internal led illumination ensures that the image on the screen is bright and easy to read.

The size of your television monitor determines the actual magnification of the item. The larger the monitor, the greater the ezRead™ magnifies! The ezRead™ is ideal for those with low vision or macular degeneration. Operates with three AAA batteries (not included) or supplied A/C power adaptor.

Magnification Table: 7x on a 17″ monitor, 11.5x on a 27″ monitor, 13.5x on a 32″ monitor, 17x on a 40″ monitor & 19.5x on a 46″ monitor

Category:

Case Pack Info

Case Quantity 24
Case Dimensions 18.125″ x 17.625″ x 19.625″
Case Weight 29.45 lbs.
Inner Quantity 6
Inner Dimensions 9.625″ x 8.625″ x 16.75″
Inner Weight 6.697 lbs.
Item Box Dimensions 8.19″ x 3.04″ x 8.27″
Item Box Weight 1.01 lbs.
UPC 750668-01118-3
20` Container Capacity 7,143
40` Container Capacity 14,662
40` High Cube Capacity 16,368

Specifications

Model Name ezRead™
Model Number DR-300
Magnification See table below
Batteries 3 AAA (not included)
Weight 0.20 lbs.
Dimensions 3.0″ x 2.5″ x 2.0″

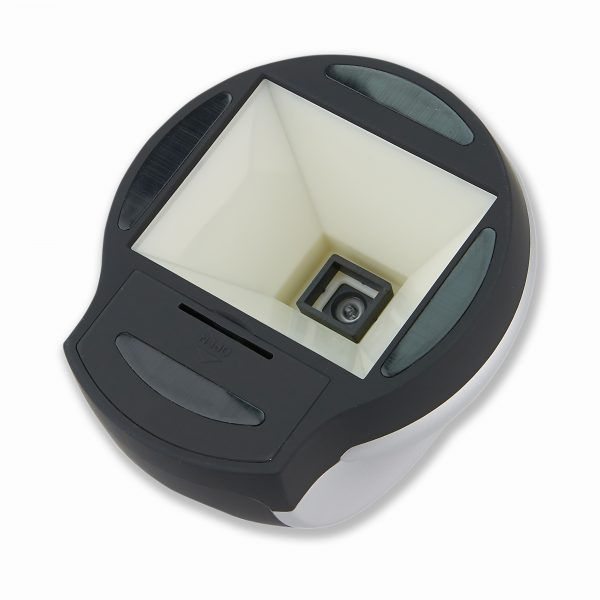

Illumination Built-in LED
Viewing Area 47mm x 35mm
Resolution VGA
Interface TV (NTSC)
MSRP $129.00

Documents

EZREAD™ Instruction Manual Download
